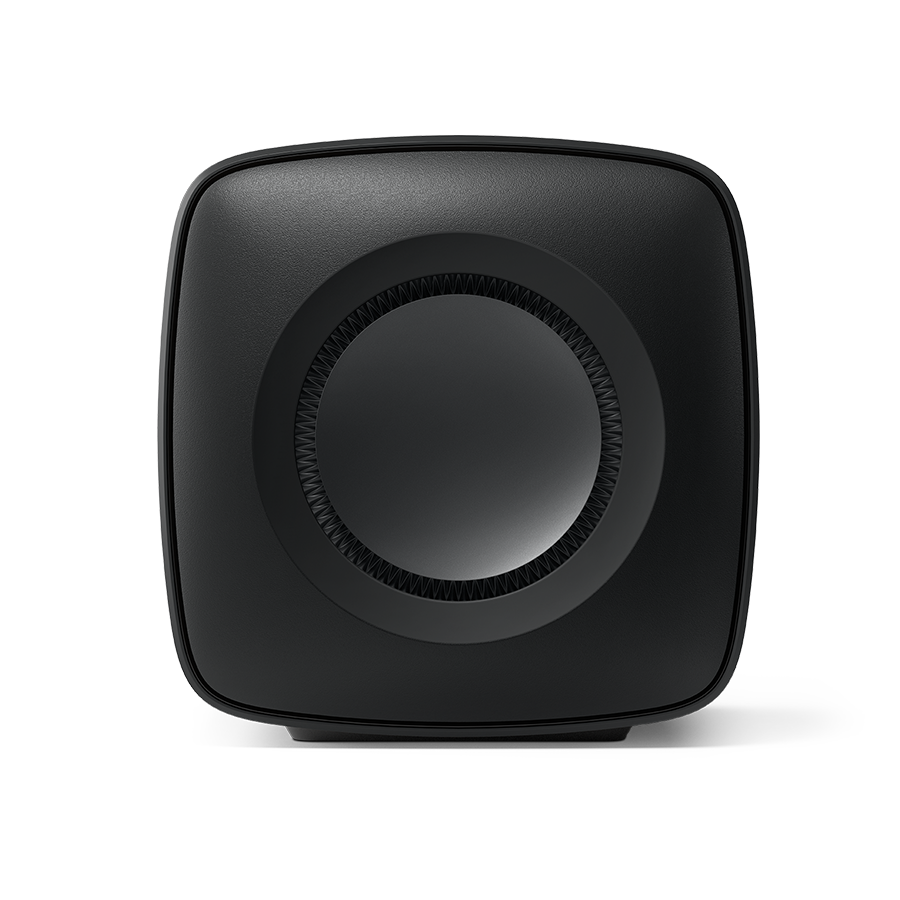

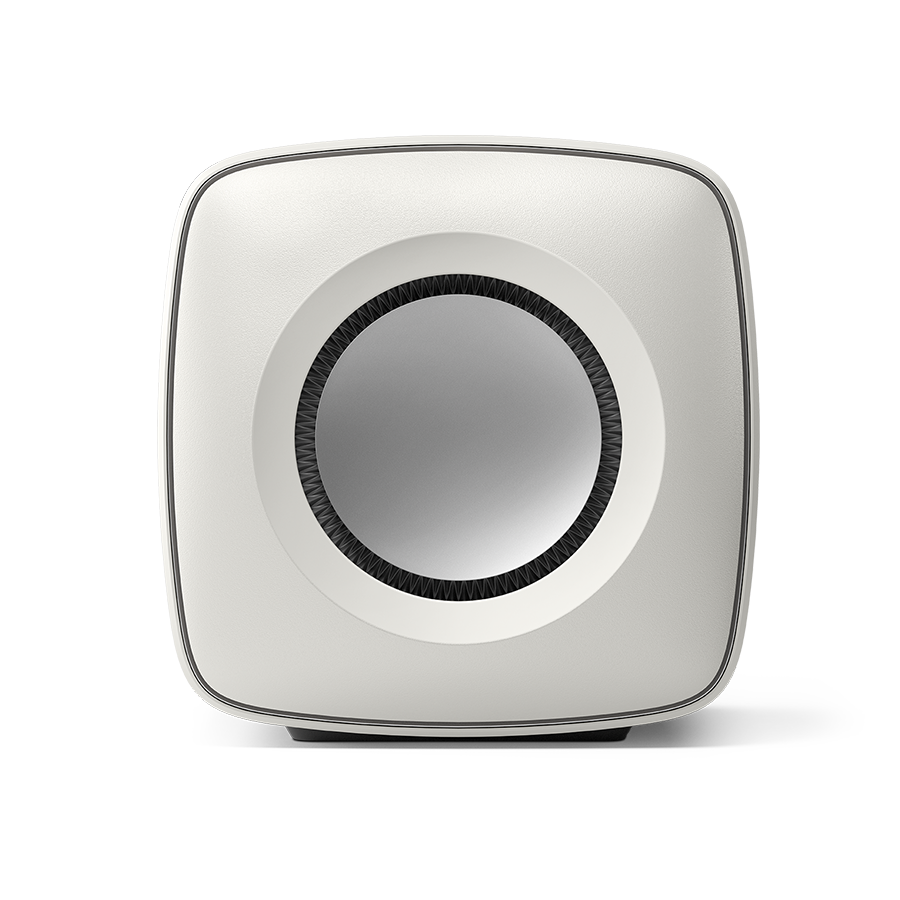

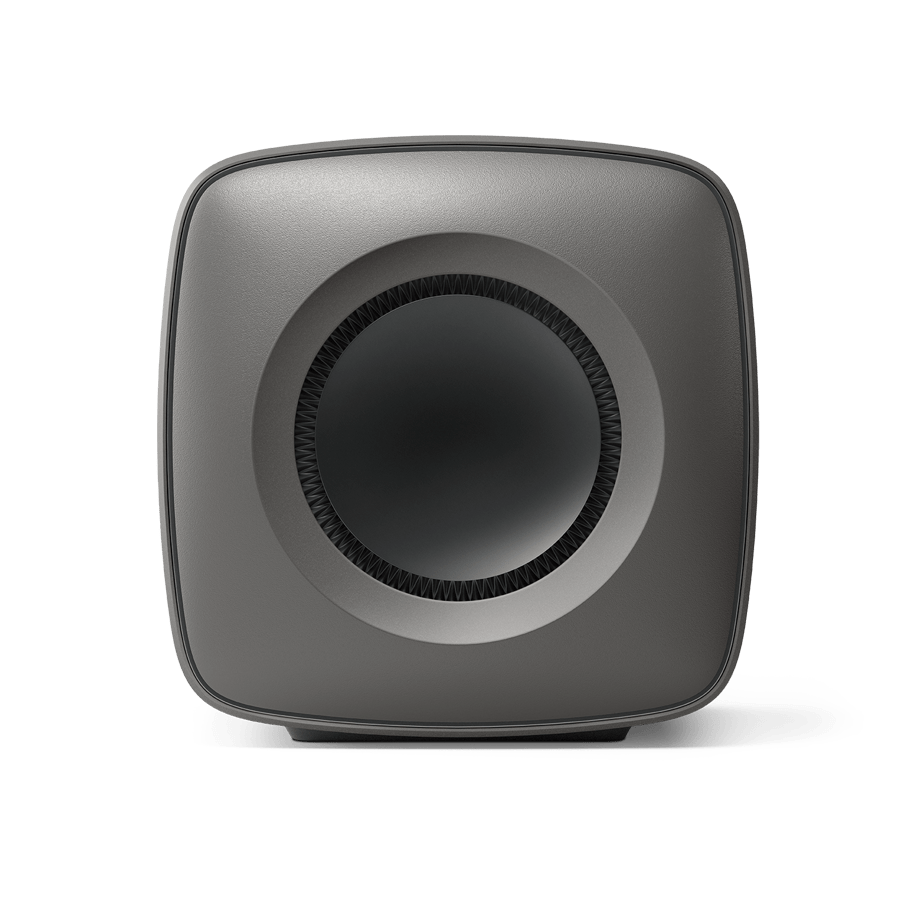

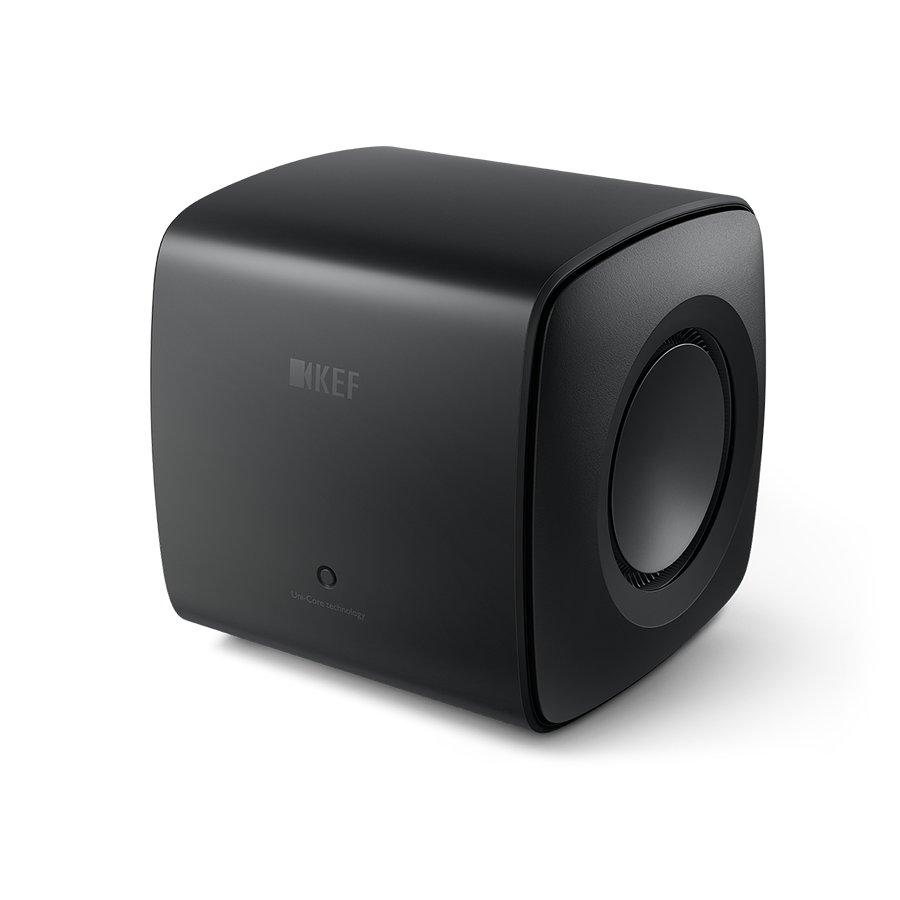

KC62 Subwoofer

  • Sale
  • Regular price USD $1,599.00

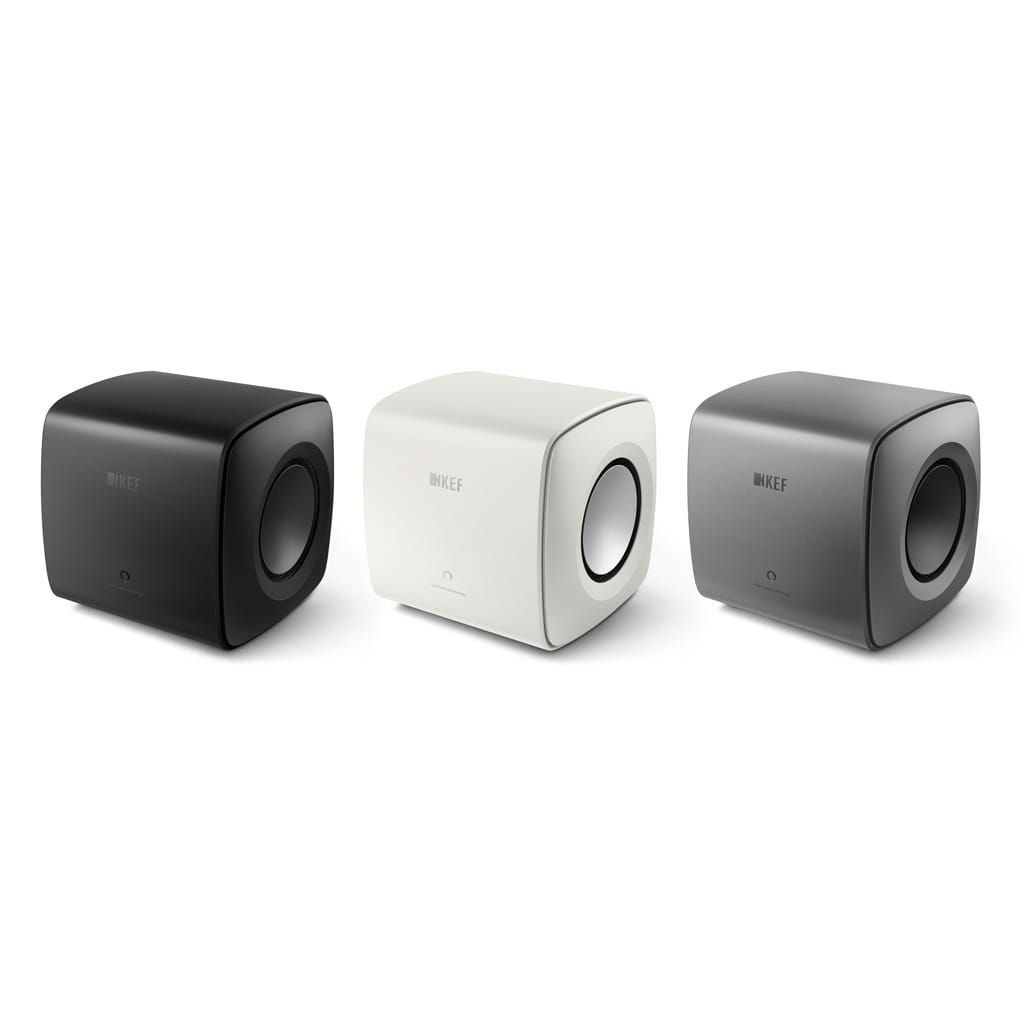

Color
Mineral White
Carbon Black

The Biggest Small Subwoofer

KC62 is an incredibly compact subwoofer that delivers the might and magic of deep, accurate bass for a thrillingly immersive music, movie and gaming experience. Created using innovative KEF engineering including the ground-breaking Uni-Coretechnology, the football-sized KC62 features two 6.5inch force cancelling drive units powered by 1,000W RMS of specially designed Class D amplification.


Don’t let the size fool you

Deep and powerful bass is no longer solely the domain of big-shouldered, massive subwoofers. KC62 is David to their Goliath; an ultra-compact subwoofer capable of delivering accurate, deep bass for an immersive music, movie and gaming experience at complete odds with its modest dimensions. And just as David beat Goliath, so KC62’s performance renders these subwoofer behemoths obsolete.

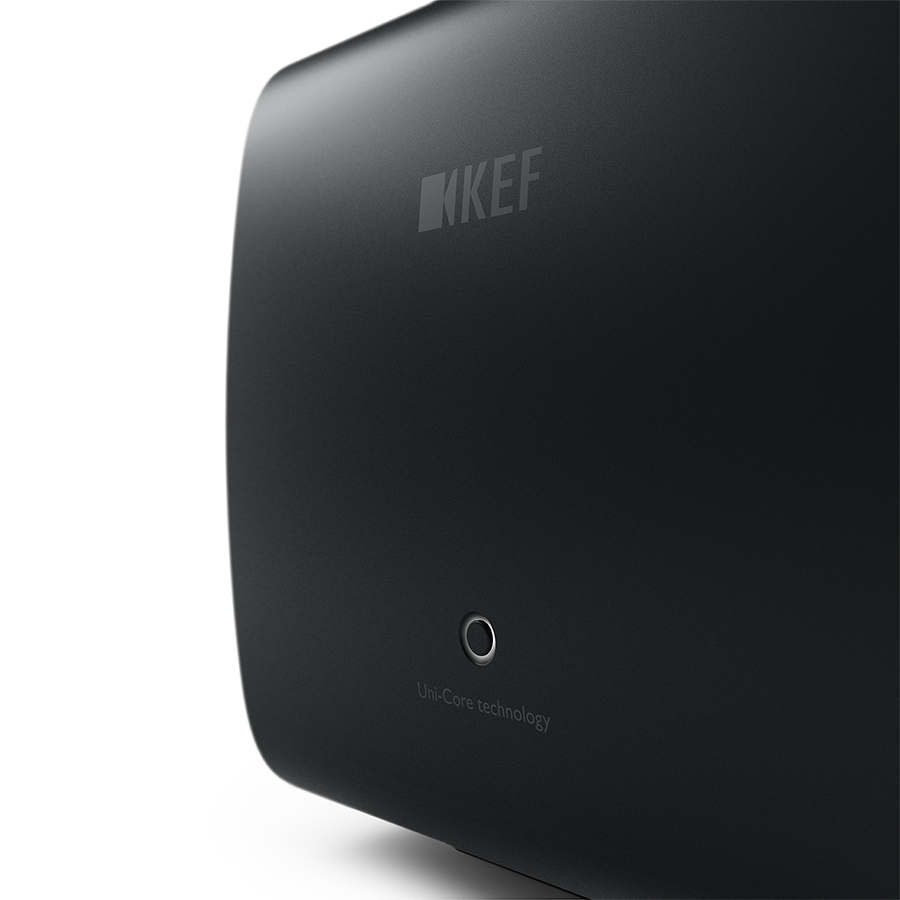

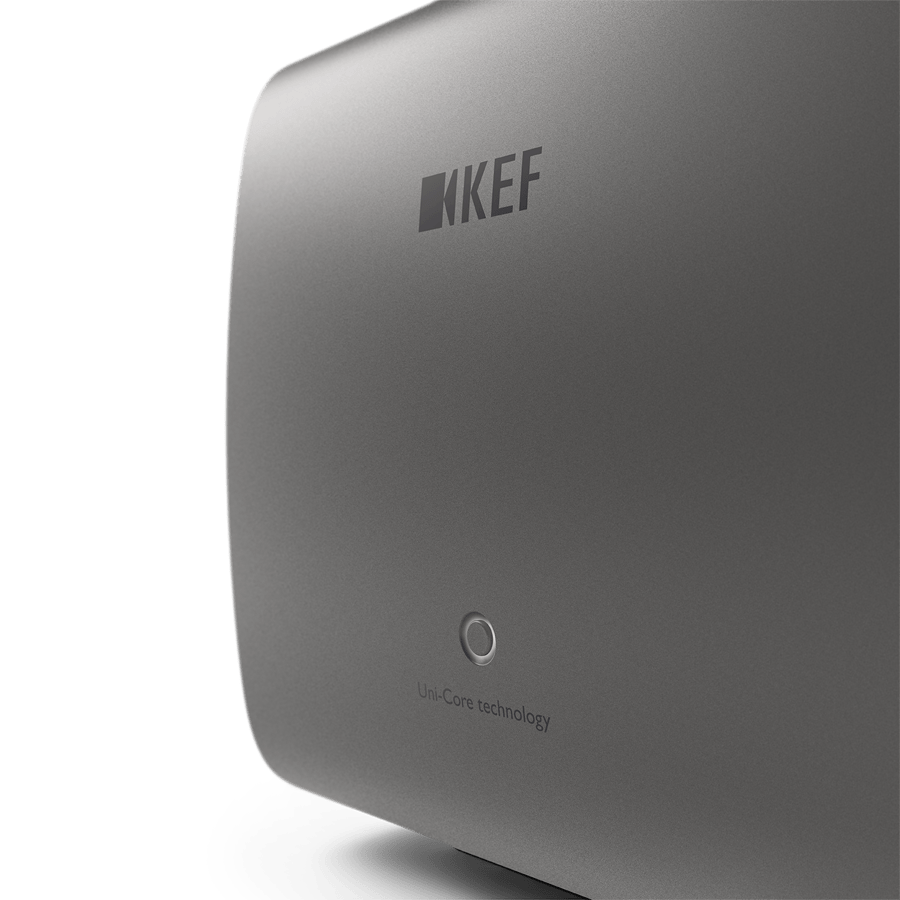

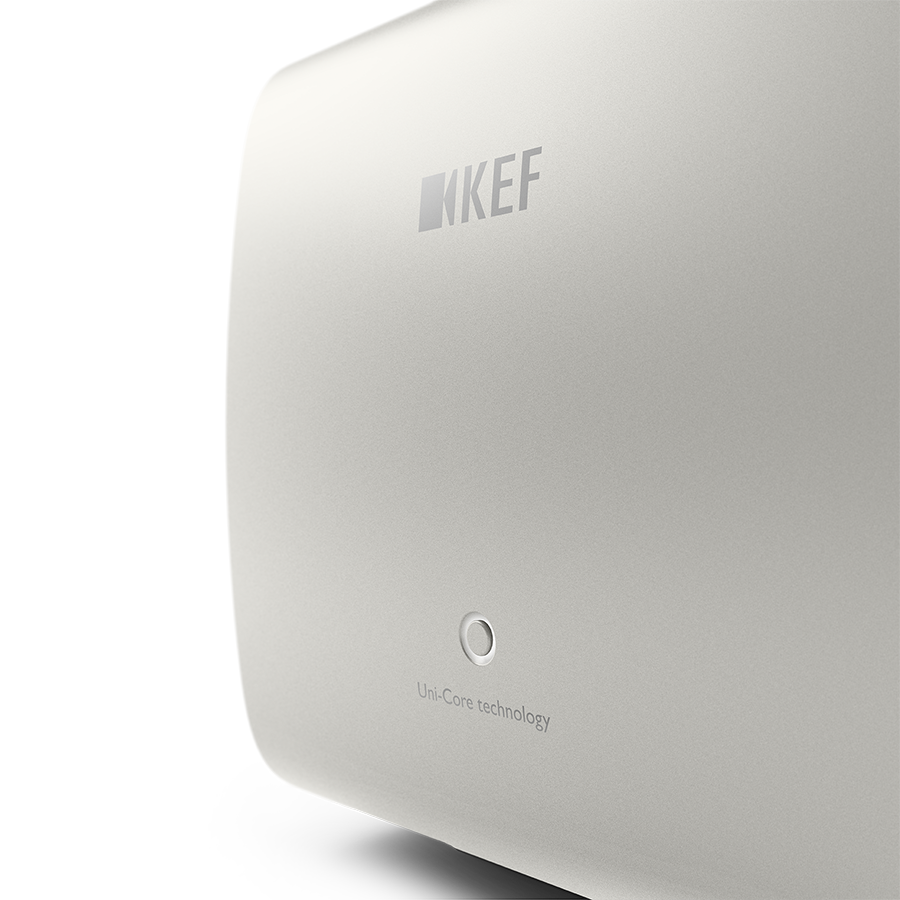

Uni-Core Technology

Craving an immersive entertainment experience but put off by bulky subwoofers? KC62’s patent-pending Uni-Core™ technology revolutionises the traditional force cancelling design to deliver deep accurate bass from an ultra-compact cabinet. Combining both drivers into a single magnet system allows cabinet size to be reduced by over a third, while also increasing excursion to unlock exceptional output and depth.

1,000W RMS

Turn up the Power

KC62’s twin drivers are powered by 1,000W RMS (2 x 500W) of specially designed Class D amplification, providing exceptional levels of control and the ability to deliver sudden bursts of power when required, for example when enjoying your favourite high-octane action sequence.

5 Pre-sets

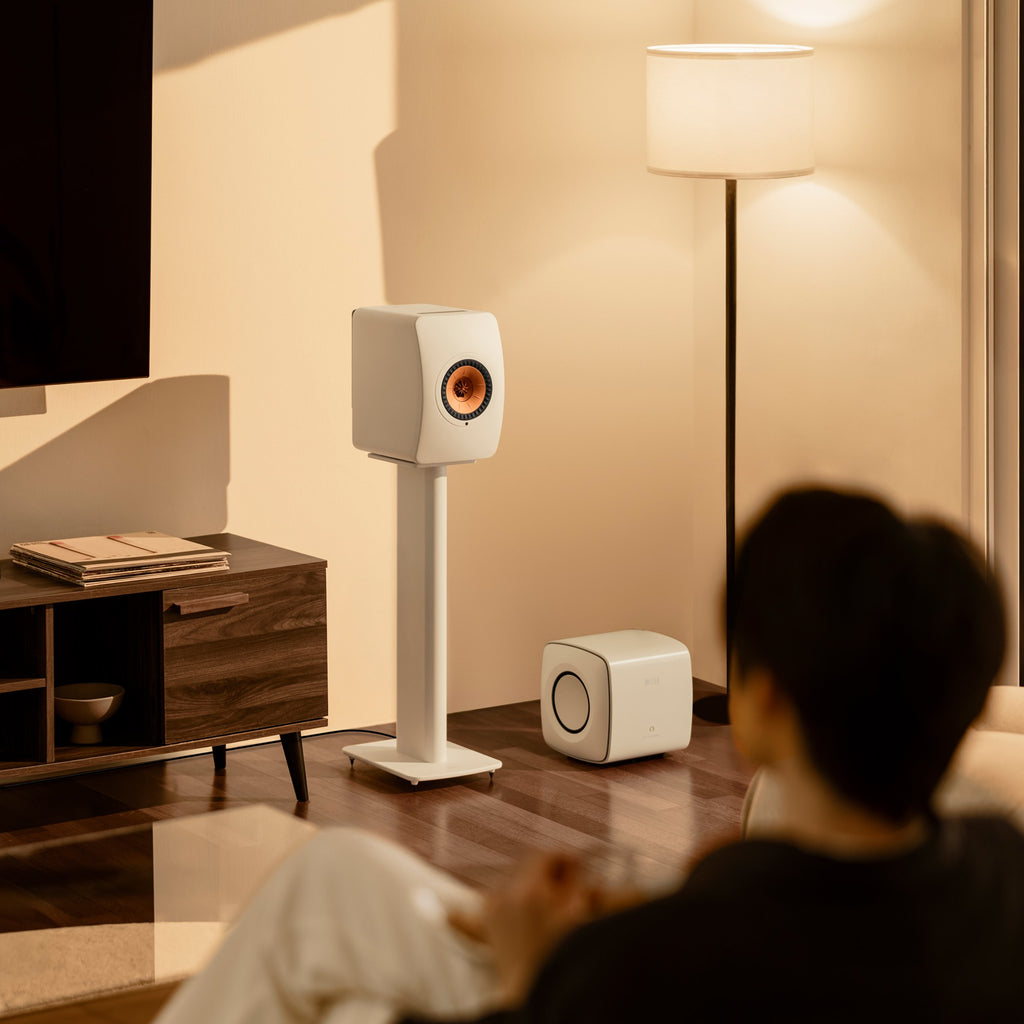

Same performance, everywhere

KC62 slips effortlessly into any environment or listening room, with the five pre-set Room Placement Equalisation feature ensuring the same performance no matter where you decide to place it; in free space, next to the wall, in a corner, nestled within a cabinet or using the dedicated apartment mode.

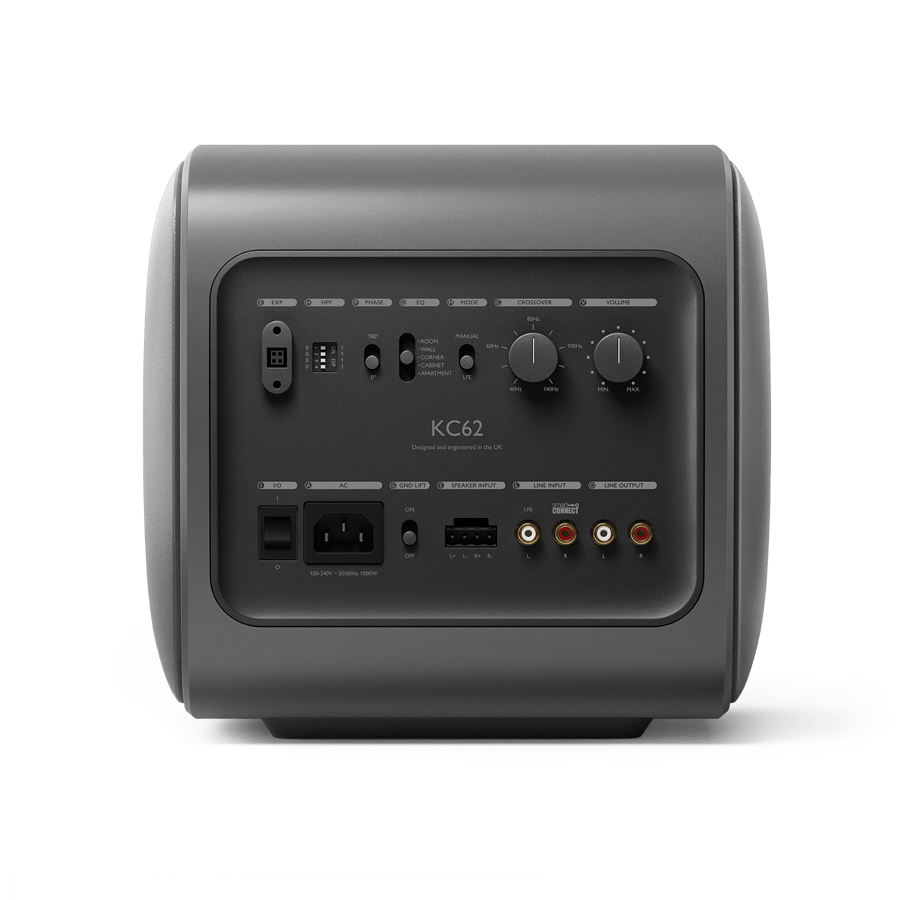

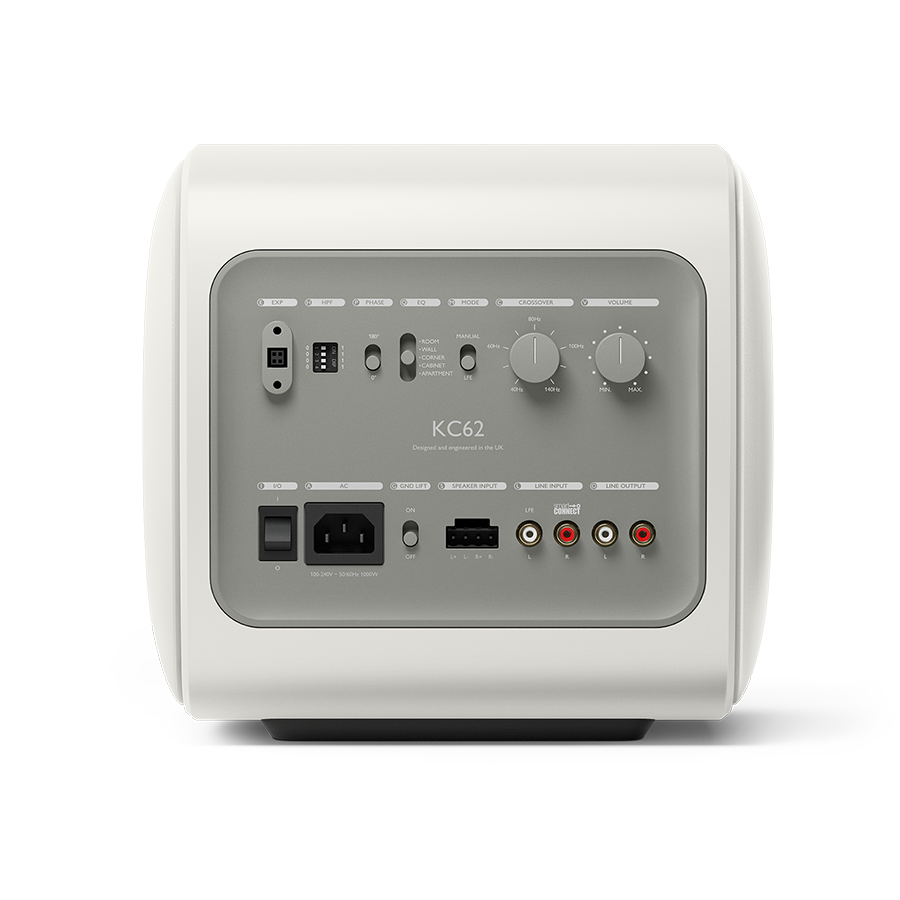

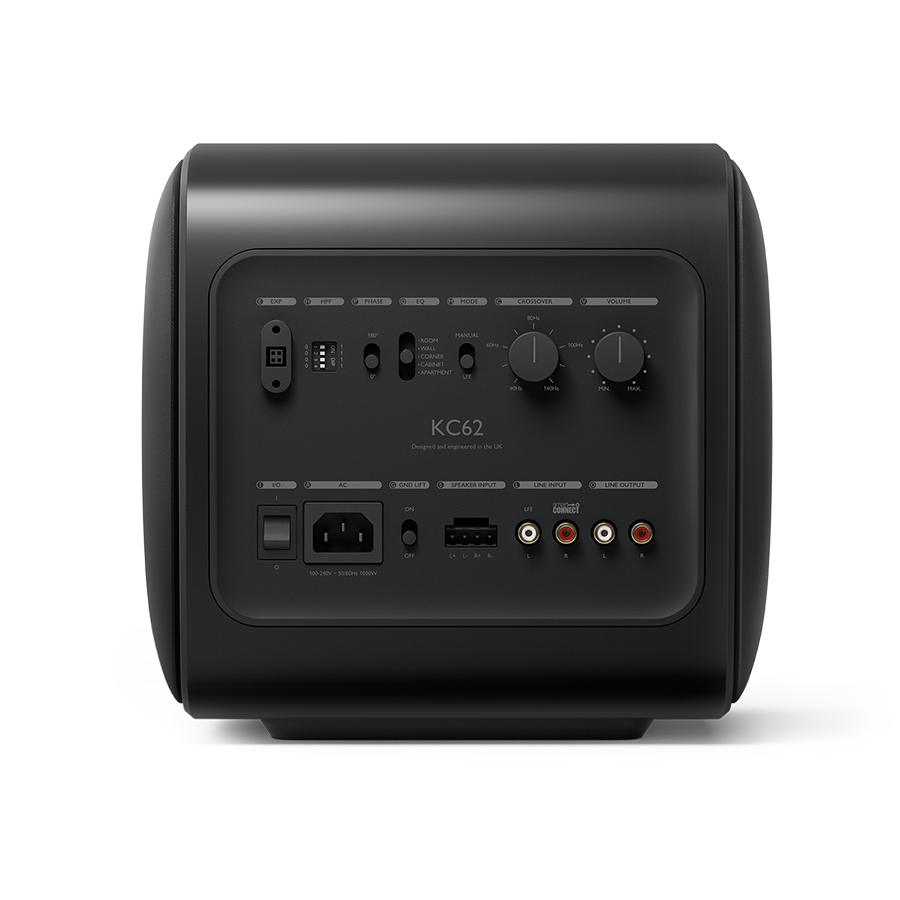

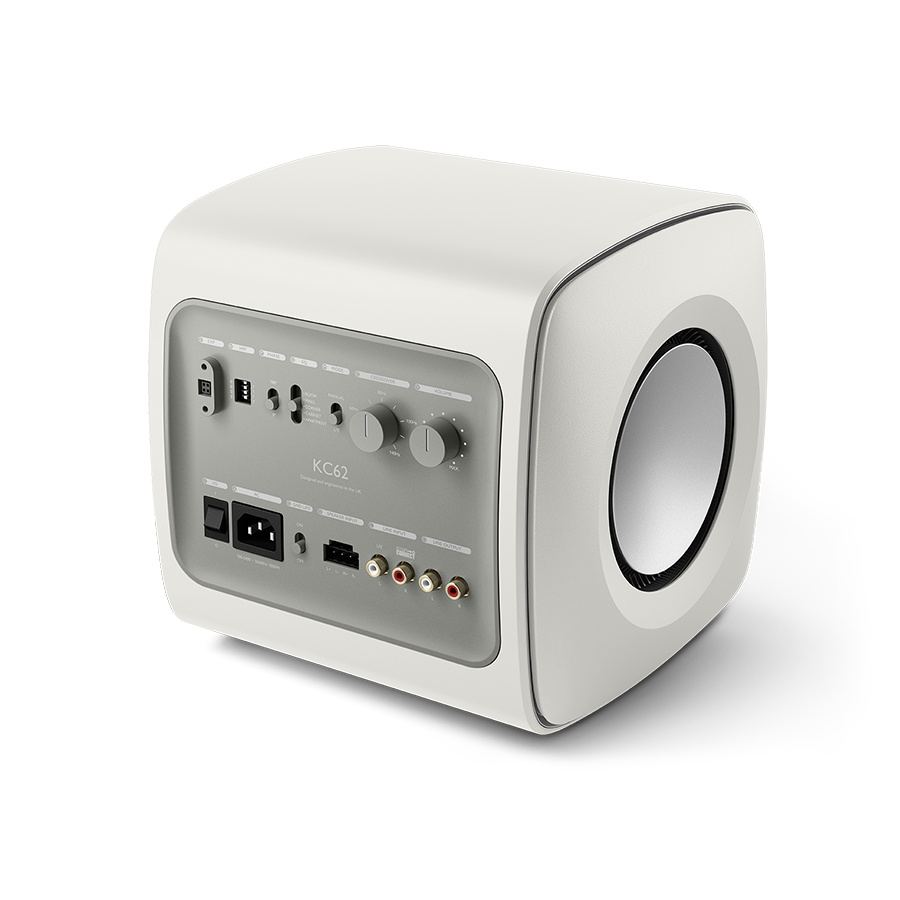

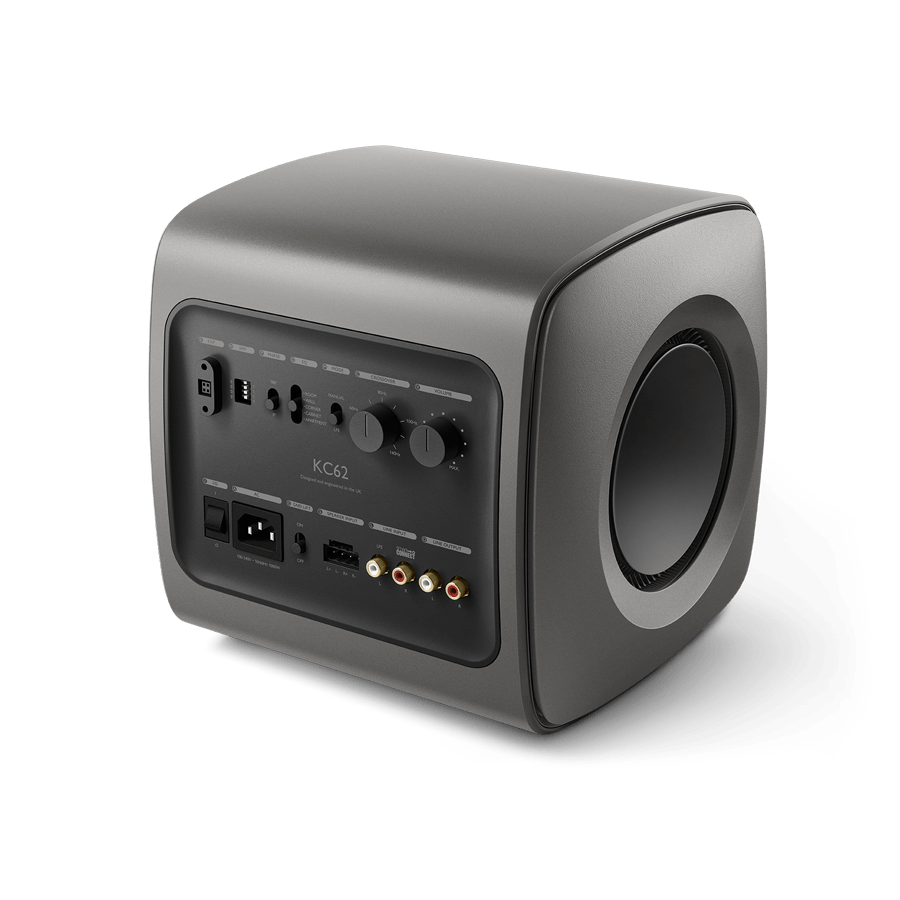

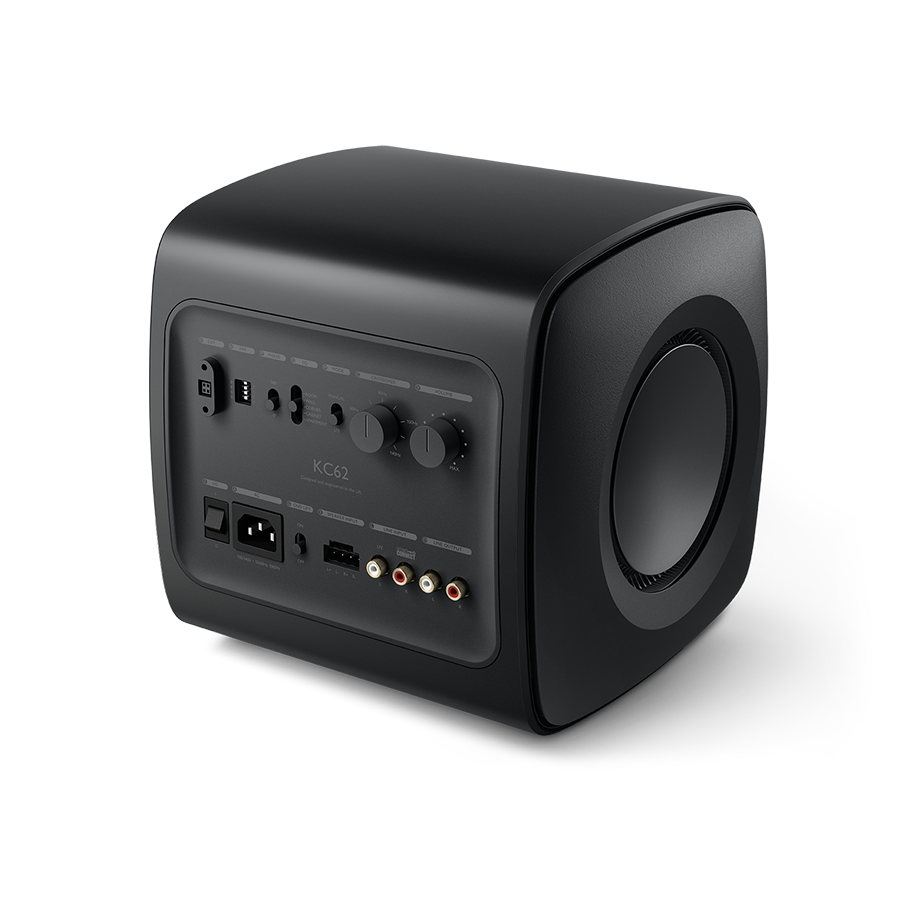

Well Connected

KC62’s connection options allow it to be used with almost any audio system, with KEF SmartConnect and speaker level inputs eliminating any connection issues. Line output with HPF allows for exceptional fine-tuned integration, and KC62 is also compatible with the KW1 for simple wireless compatibility.

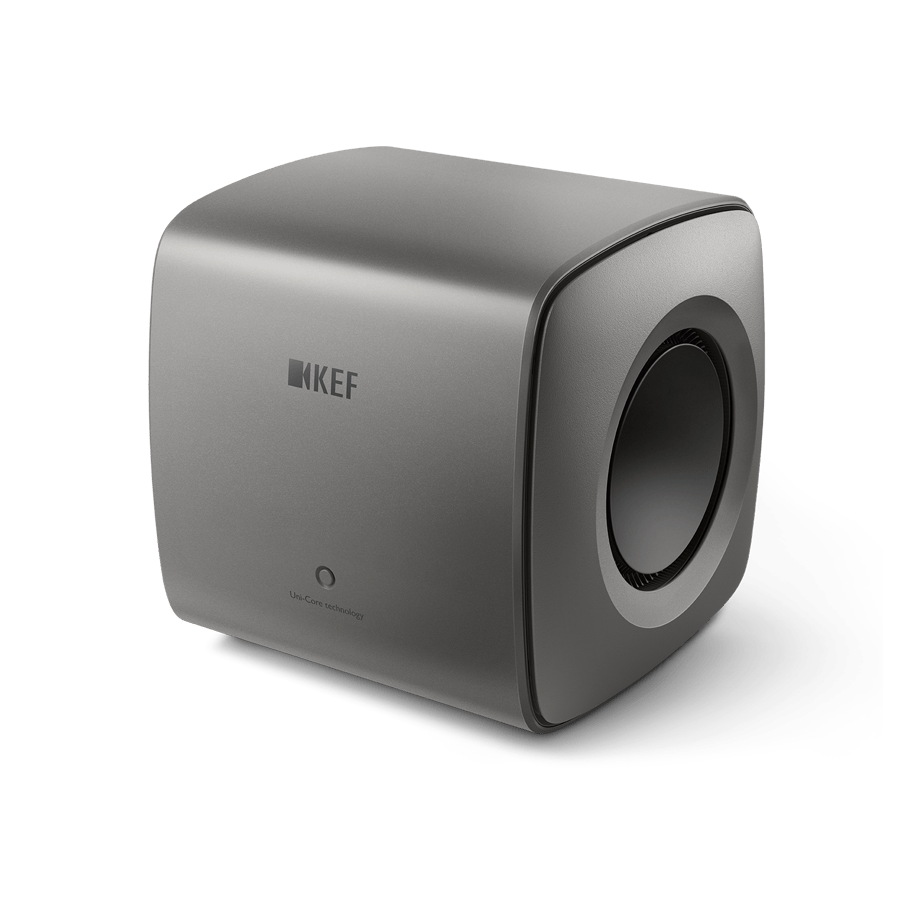

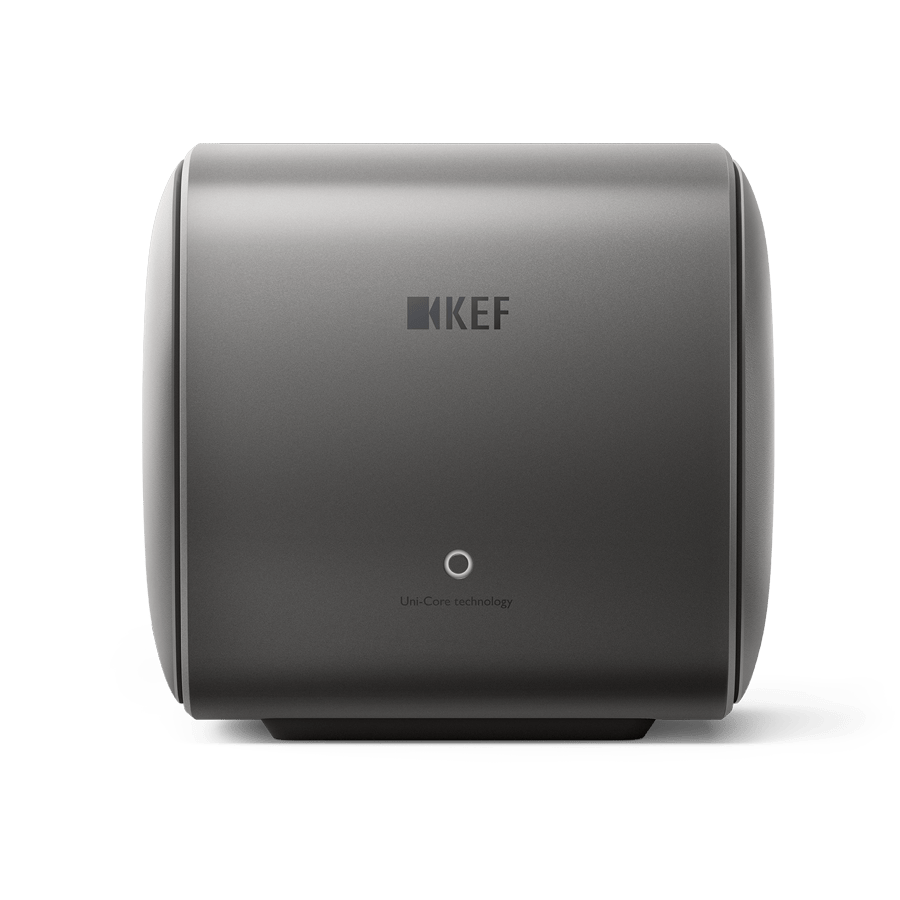

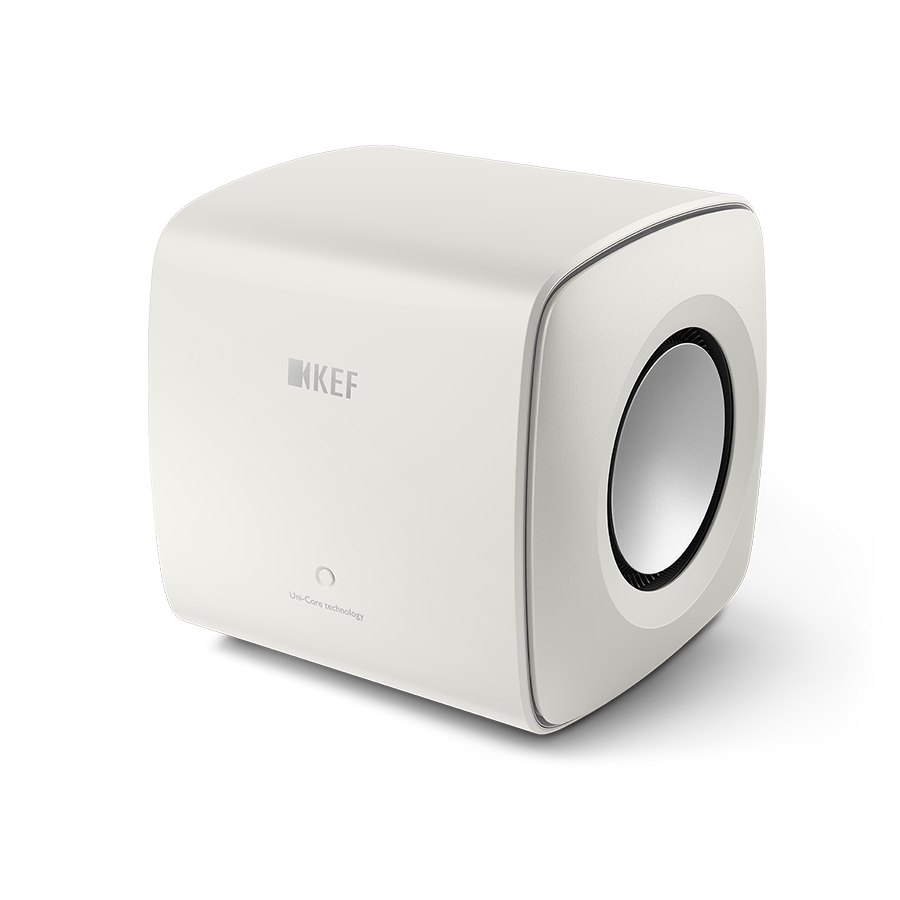

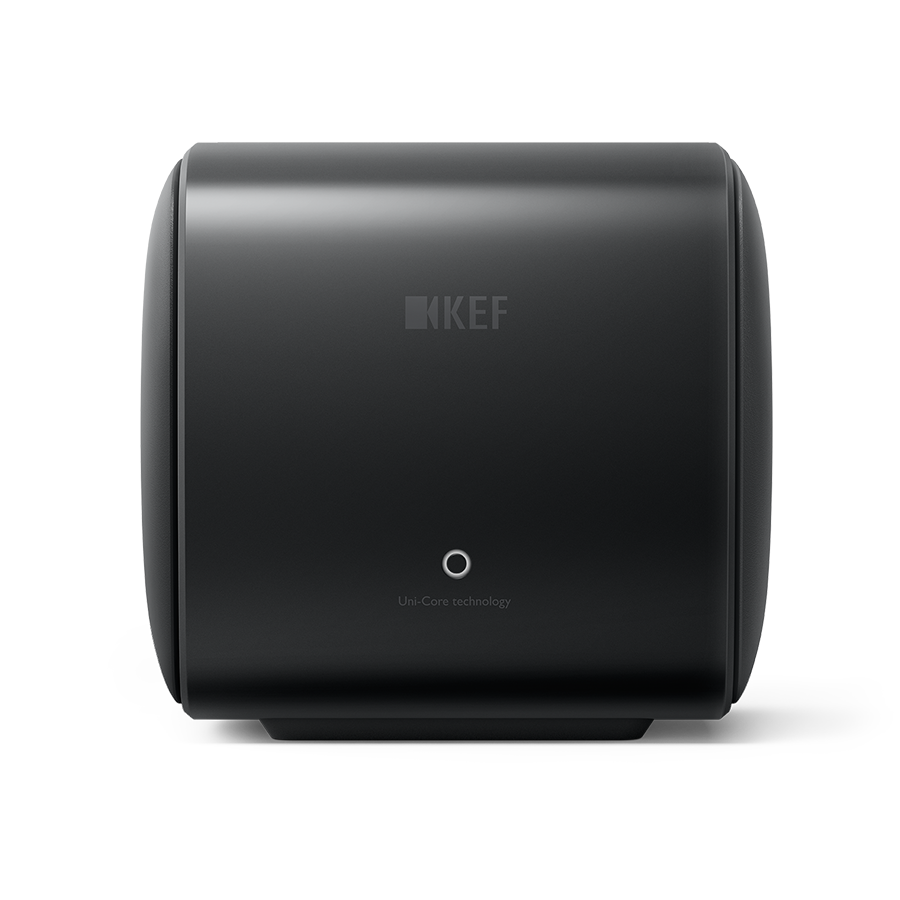

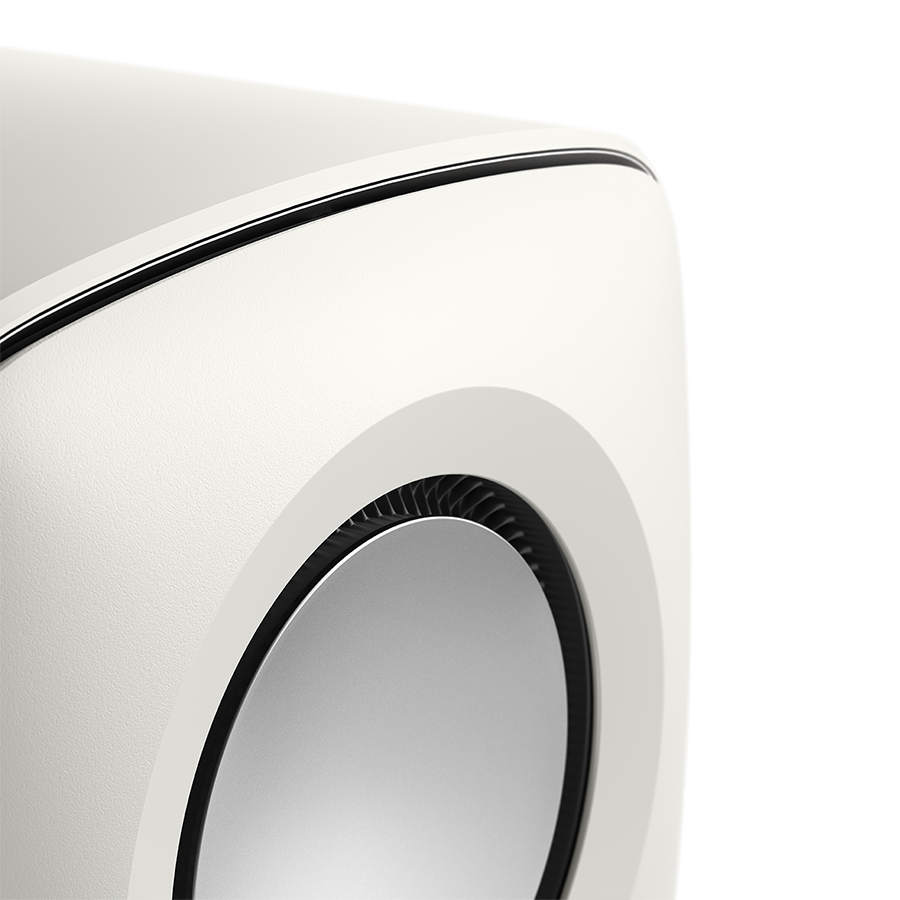

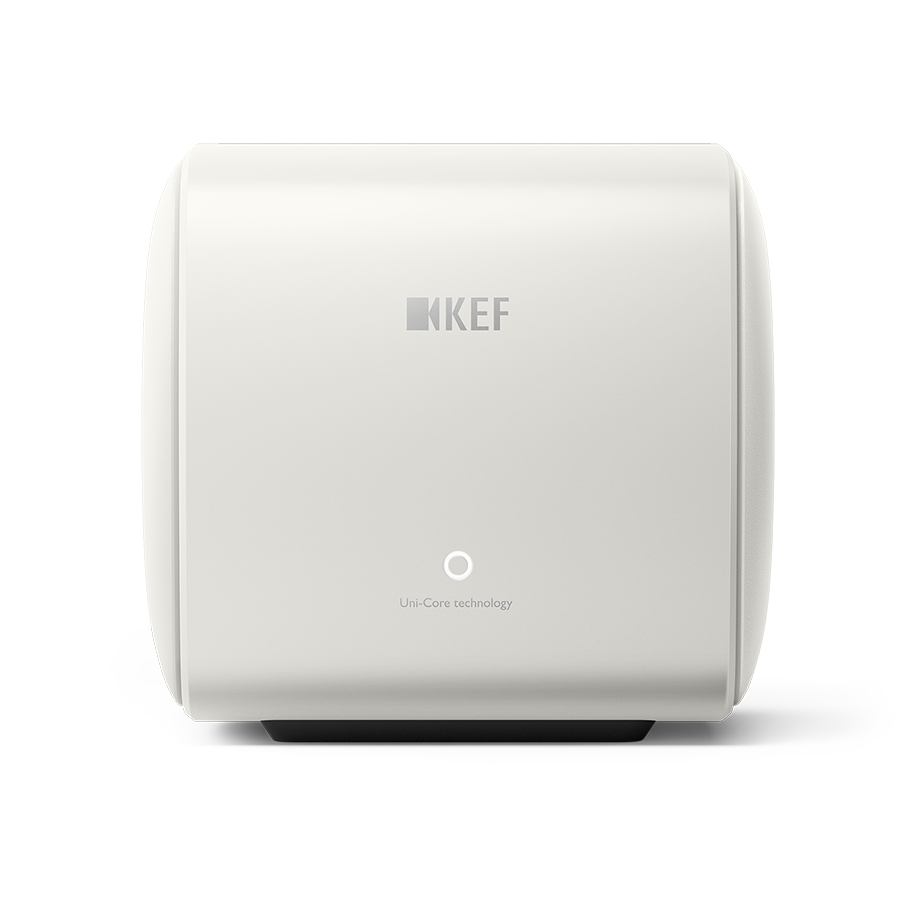

Design meets substance

Crafted from extruded aluminium, KC62’s curved cabinet perfectly blends form and function, providing strength and beauty. Small enough to blend into any décor, the Carbon Black and Mineral White finishes also make KC62 an exceptionally attractive statement.

Accurate, deep bass with speed and power

Accuracy is a KEF hallmark, whether in full-range loudspeakers or in subwoofers dedicated to delivering sensational bass. An array of innovative technologies come together to ensure KC62’s bass accuracy, including the P-Flex surround for precise driver movement and Smart Distortion Control Technology that reduces distortion, while performance is maximised via KEF’s Music Integrity Engine.

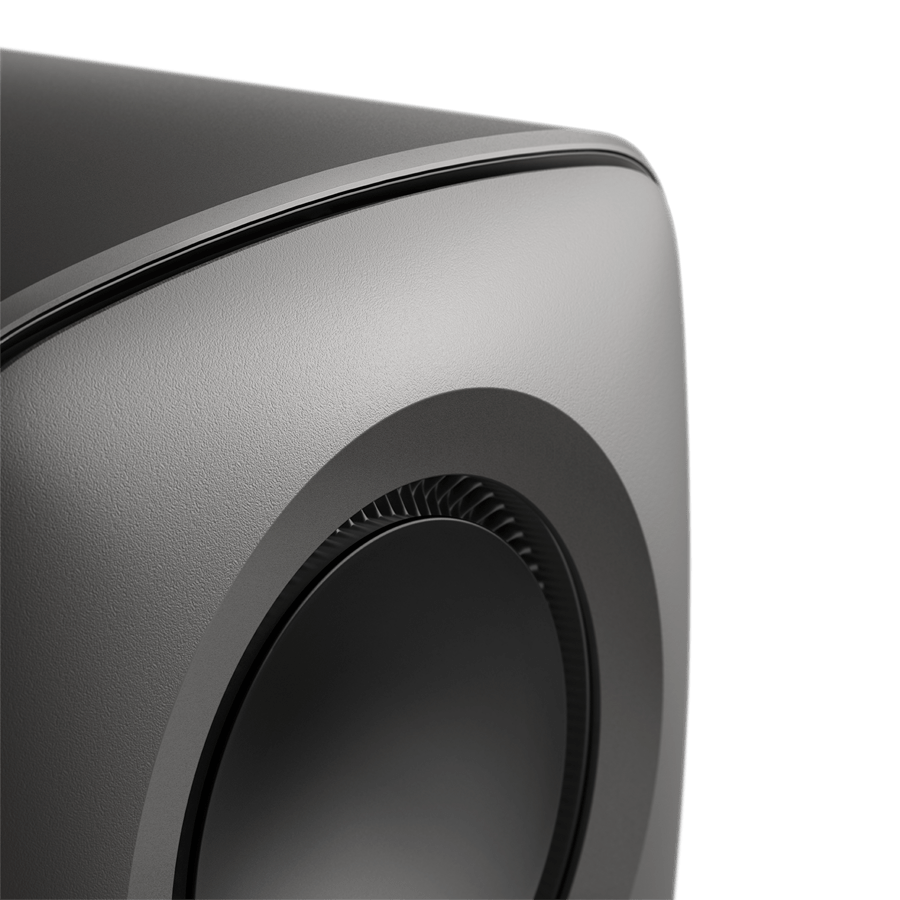

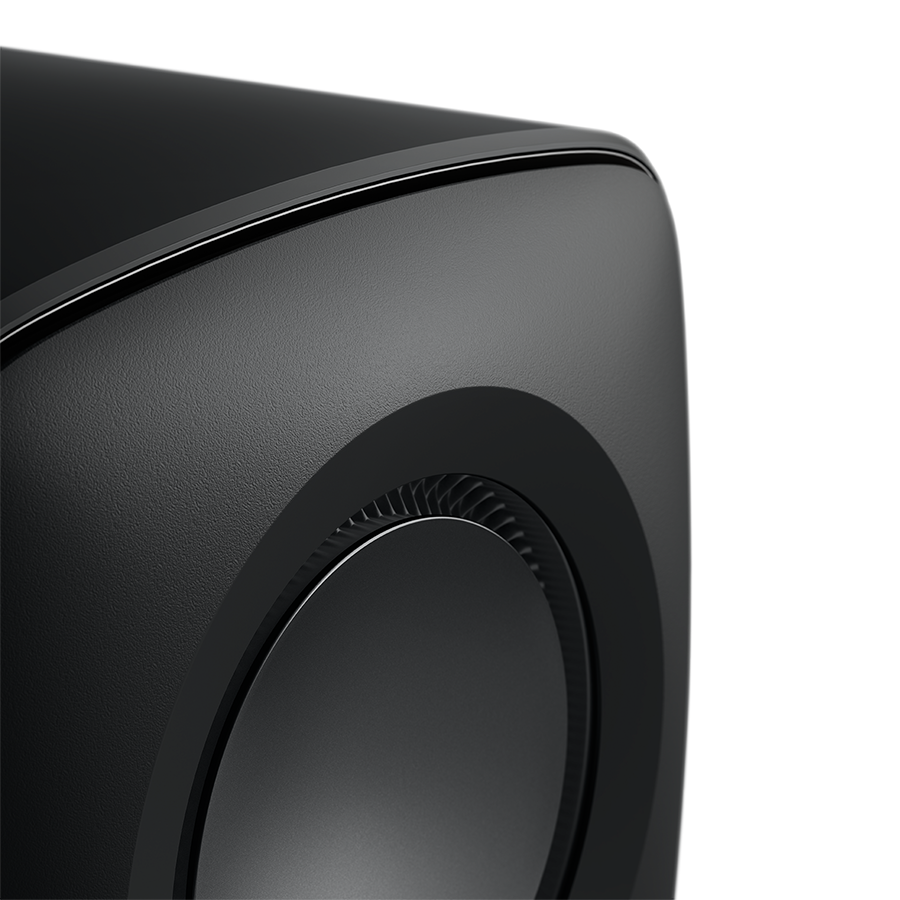

P-Flex (aka Origami Surround)

The P-Flex driver surround has a unique pleated design inspired by Origami, the Japanese art of paper folding, engineered to better resist the acoustic pressure in the cabinet to allow the driver to move more precisely compared to traditional surround designs. The result is deeper bass extension and a more accurate and detailed bass reproduction.

Accurate, deep bass with speed and power

Accuracy is a KEF hallmark, whether in full-range loudspeakers or in subwoofers dedicated to delivering sensational bass. An array of innovative technologies come together to ensure KC62’s bass accuracy, including the P-Flex surround for precise driver movement and Smart Distortion Control Technology that reduces distortion, while performance is maximised via KEF’s Music Integrity Engine.

P-Flex (aka Origami Surround)

The P-Flex driver surround has a unique pleated design inspired by Origami, the Japanese art of paper folding, engineered to better resist the acoustic pressure in the cabinet to allow the driver to move more precisely compared to traditional surround designs. The result is deeper bass extension and a more accurate and detailed bass reproduction.

The right subwoofer for you

KC62

KF92

KC62

KF92


The ultra-compact subwoofer that maximises bass from minimum space

The cabinet volume is 63% smaller than KF92

The perfect balance of compact size and impressive performance

Max SPL is about 2 times louder than KC62

The ultra-compact subwoofer that maximises bass from minimum space

The cabinet volume is 63% smaller than KF92

The perfect balance of compact size and impressive performance

Max SPL is about 2 times louder than KC62


Driver Unit

Driver Unit

2 x 6.5”

Uni-Core force cancelling

2 x 9”

Force cancelling

2 x 6.5”

Uni-Core force cancelling

2 x 9”

Force cancelling


Amplifier Power

1000W RMS

2 x 500

1000W RMS

2 x 500

Amplifier Power

1000W RMS

2 x 500

1000W RMS

2 x 500


Max SPL

105 dB

110 dB
(about 2 times louder than KC62)
equivalent to Live Rock Music

Max SPL

105 dB



110 dB
(about 2 times louder than KC62)
equivalent to Live Rock Music


Dimension

246 x 256 x 248 mm
(63% smaller in volume than KF92)

353 x 330 x 361 mm

Dimension

246 x 256 x 248 mm
(63% smaller in volume than KF92)

353 x 330 x 361 mm


Frequency Response (-3dB)

11Hz

11Hz

Frequency Response (-3dB)

11Hz

11Hz


Optimal Room Size

5 – 50m2

10 – 100m2

Optimal Room Size

5 – 50m2

10 – 100m2

Experience

KC62 is a feat of engineering that far exceeds expectations. The best way to experience the unprecedented KC62 is up close and personal.

Experience

KC62 is a feat of engineering that far exceeds expectations. The best way to experience the unprecedented KC62 is up close and personal.

The Details

Specifications

Model

KC62



Design

Uni-Core Force Cancellation



Drive units

2 x 6.5” drivers



Frequency response (±3dB)

11Hz – 200Hz



Max output

105dB



Amplifier type

Built-in Class D



Amplifier power

1000W RMS (2 x 500W RMS)



Variable low pass filter

40Hz – 140Hz, LFE



Input

RCA phono sockets
Speaker level inputs



Line output

RCA phono sockets



Line output high pass filter

40Hz – 120Hz, Bypass



Power requirements

100 - 240V, 50/60 Hz



Power consumption

1000W



Weight

14kg (30.9Ibs)



Dimension (H x W x D) with rear panel and feet

246 x 256 x 248 mm (9.68 x 10.07 x 9.76 in)



Colour

Carbon Black
Mineral White



DOWNLOAD

Manual
Information Sheet
White Paper



KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
