REFERENCE 5 Floorstanding Speaker

  • Sale
  • Regular price USD $20,800.00 per pair

Colour
Silver Satin Walnut
Copper Black Aluminium
Blue Ice White
Piano Black High Gloss
Satin American Walnut
Luxury Gloss Rosewood

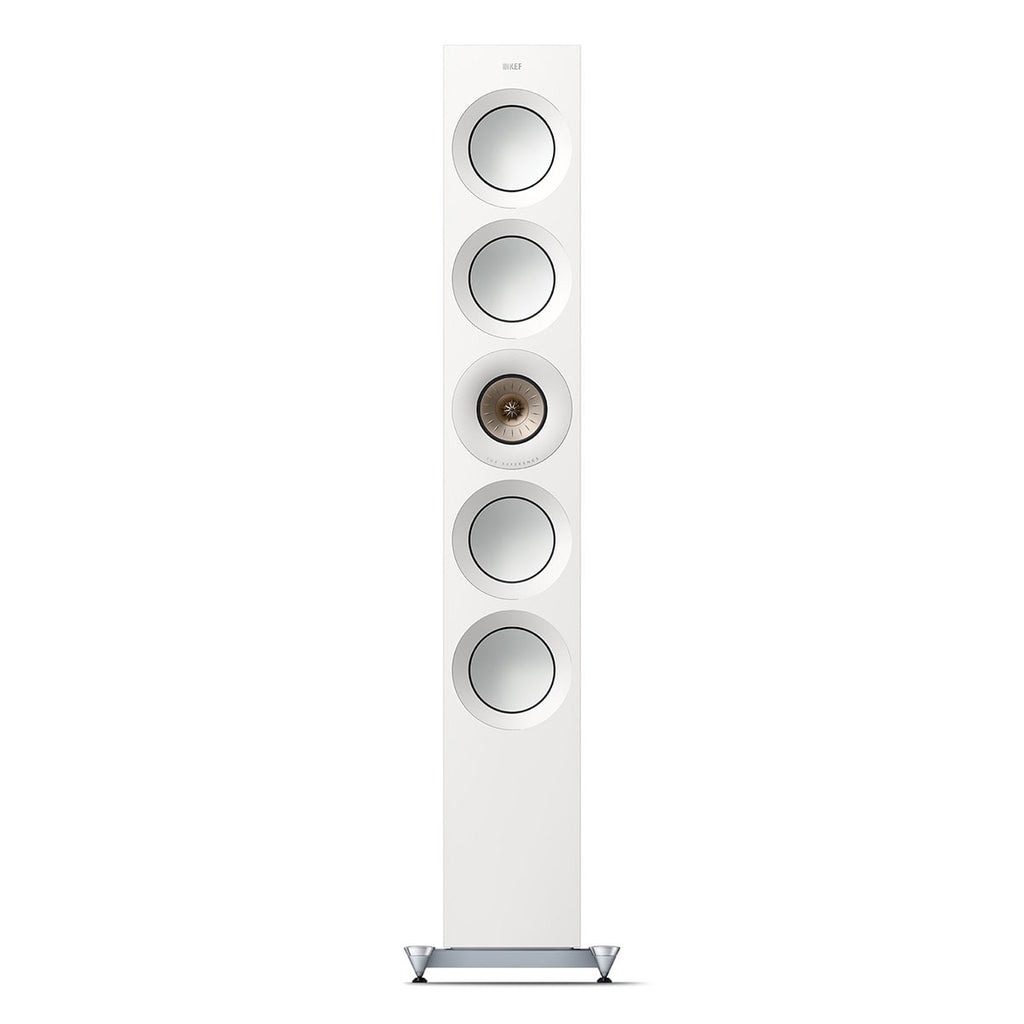

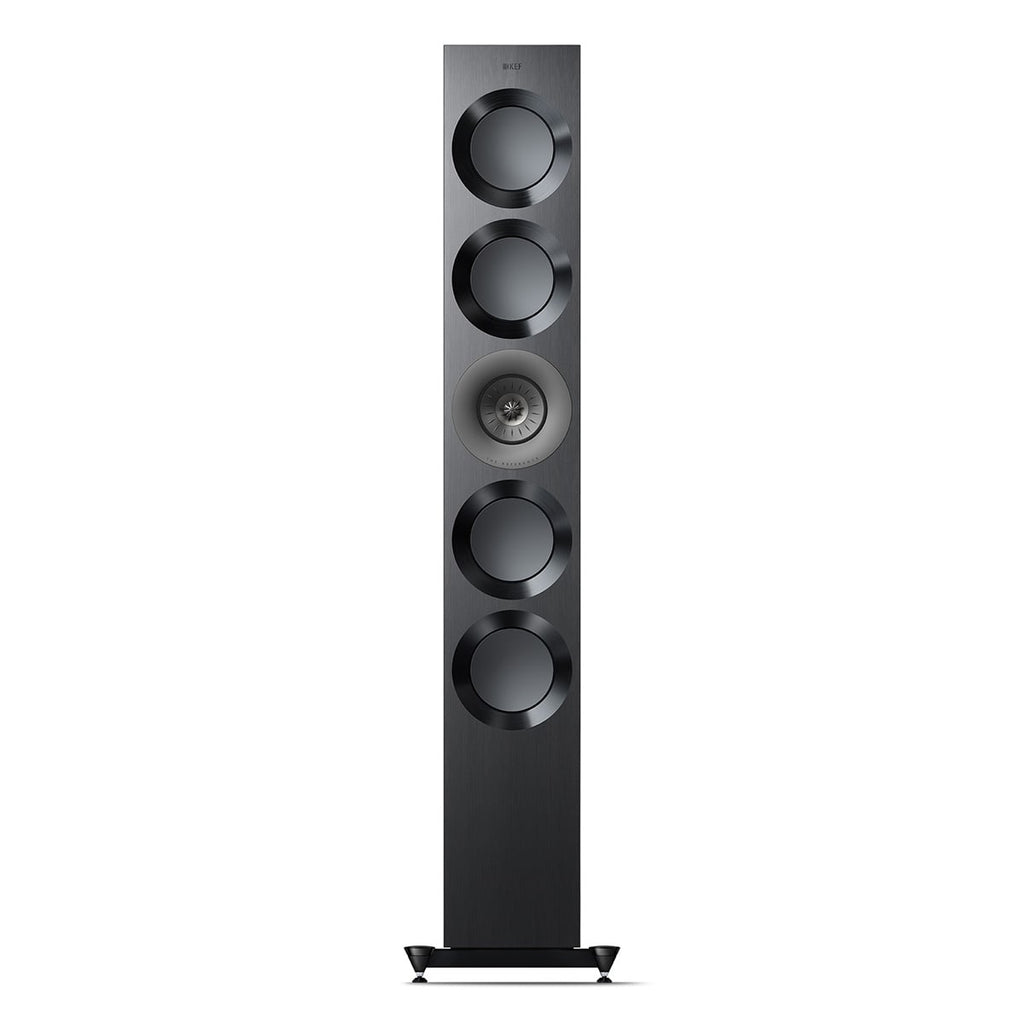

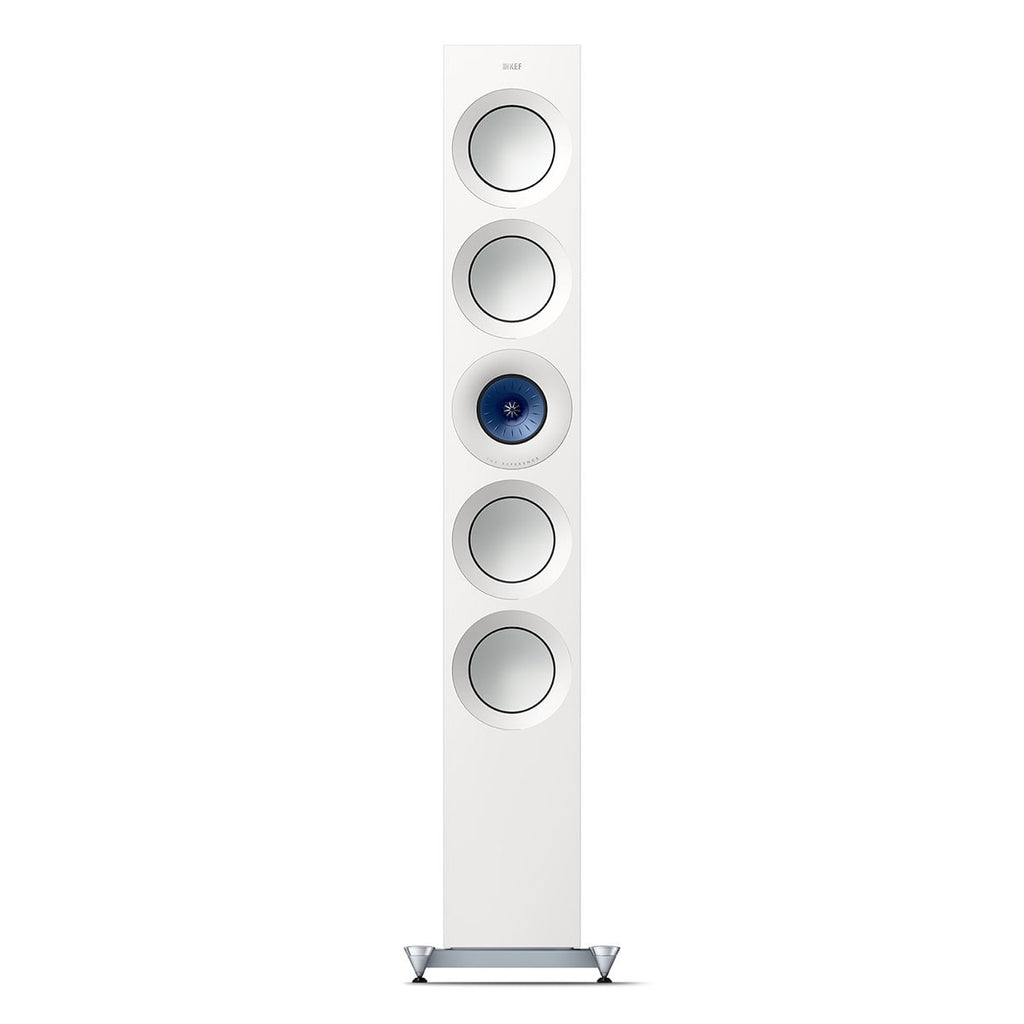

Flagship three-way floorstander

If you're serious about experiencing the ultimate in sound reproduction, the magnificently authoritative Reference 5 exemplifies the passion for innovation that underpins The Reference design philosophy.

Hand-built in Maidstone, UK.


SOUND

REFERENCE 5

This three-way floorstander aligns four powerful 165mm (6.5 inch) bass drivers with KEF's latest 125mm (5 inch) Uni-Q array and the new vented 25mm (1 inch) aluminium dome tweeter. Lows are reproduced with consummate agility and control, integrating with the midrange to create spine-tingling accuracy and depth.

SPECIFICATIONS

The Details

Specifications

WEIGHT

60.2kg (132.7lbs)



DIMENSION (H X W X D)

H x W x D with grille and terminal :
1350 x 205 x 470 mm (53.1 x 8.0 x 18.5 in. )

H x W x D with grille, terminal & plinth :
1397 x 349 x 470 mm (55 x 13.7 x 18.5 in.)



DESIGN

Three-way bass reflex



Unit measurement

Pair

Frequency Range

Typical in room bass response: 25Hz (-6dB)
Free Field - Short port: 35Hz - 45kHz (-6dB)
Free Field - Long port: 32Hz - 45kHz (-6dB)



Frequency Response

40Hz - 35kHz (±3dB)



Crossover Frequencies

350Hz, 2.8kHz



Maximum Output

116 dB (peak sound pressure level at 1m with pink noise)



Amplifier class

50-400W


Sensitivity90dB (2.83V/1m)

Harmonic distortion2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz



Impedance8 Ohms

(min.3.2 Ohms)


DRIVE UNITS

Uni-Q driver array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium
Bass units: LF: 4 x165mm (6.5in.) aluminium



CROSSOVER FREQUENCIES

350Hz, 2.8kHz




downloads

THE REFERENCE Brochure
THE REFERENCE Manual
THE REFERENCE 8b Manual
THE REFERENCE White Paper
THE REFERENCE Information Sheet

KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. * Measurement per unit
