Thin-bezel in-ceiling speaker
The Ci160CRds thin-bezel in-ceiling speaker is a high-fidelity flush-mount dual stereo speaker that is ideal for locations with room for only one speaker.

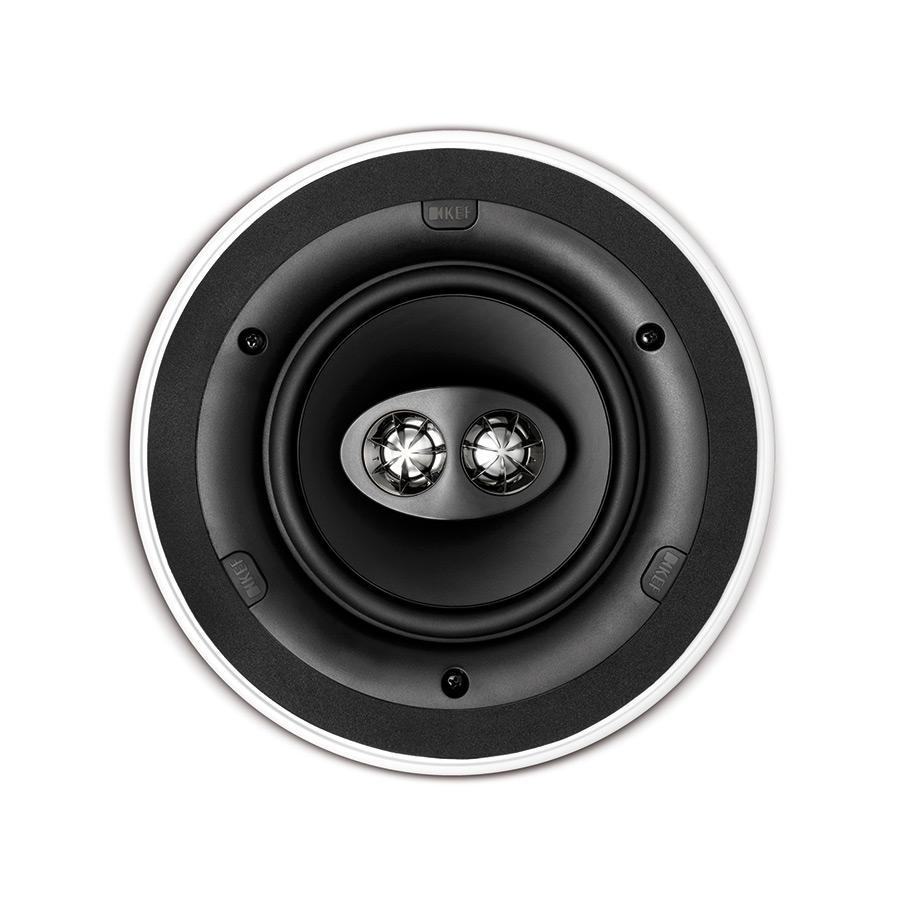

Ci160CRds Dual Stereo
The KEF Ci Series Dual Stereo models are high-fidelity flush-mount speakers that recreates stereo, and are ideal for locations where there is only room for one speaker. Thanks to KEF's simple and ingenious screw down clamping system - with moisture-resistant fixings - you can place these speakers in environments such as bathrooms or under eaves.
The Details
Key Features
UTB™ Ultra Thin Bezel
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
FEATURES
Lossless Audio
UTB™ Ultra Thin Bezel
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
Asymmetrical tweeter island for wide off-axis response
Dual 19mm (0.75in.) Aluminium dome tweeters and 'tangerine' waveguides
Dual voice coil 160mm (6.5in.) extended response bass driver
SPECIFICATIONS
Nominal Impedance
8 Ohm
Sensitivity
91dB (2.83V/ 1m)
Crossover Frequencies
3.2kHz
Frequency Response
50Hz - 20kHz (±6dB) open backed
Drive Units
LF: Dual voice coil 160mm
HF: 2 x 19mm (0.75in.)
HF: 2 x 19mm (0.75in.)
Recommended Amplifier Power
10 - 80W
Product External Dimension (H x W x D)
Diameter : 234.6mm (9.24in.)
Depth : 93mm (3.66in.)
Depth : 93mm (3.66in.)
Cut-Out Dimensions (H x W)
Diameter : 196mm (7.71in.) Without back can
Mounting Thickness
Ceiling Thickness (Maximum): 36mm (1.42 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
Mounting Depth From Surface
Product only : 86mm (3.36in.)
Optional Rough In Frame
RIF160R
Net Weight
1.80kg (4.0lbs.)
Unit Measurement
Piece
Downloads
Manual
Product Information Sheet
Ci Series Spec. Sheet
Individual Information Spec. Sheet
Ci Series Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Ci Series Pamphlet
Ci Accessory Guide
Ci Brochure
Product Information Sheet
Ci Series Spec. Sheet
Individual Information Spec. Sheet
Ci Series Minimum Cabinet Volume Chart
Cutout Template
EASE GLL DATA
Product Drawing
Ci Series Pamphlet
Ci Accessory Guide
Ci Brochure
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE.
Please visit our Ci Software Download page for more details.
