Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium.
Features KEF’s patented Uni-Q driver array
Ci160TS
Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium. Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today's luxury high-rise apartments or your music system.
Key Features
- <36mm mounting depth allows fitment to very restricted cavities
- Ultra-low profile LF unit with excellent bass extension

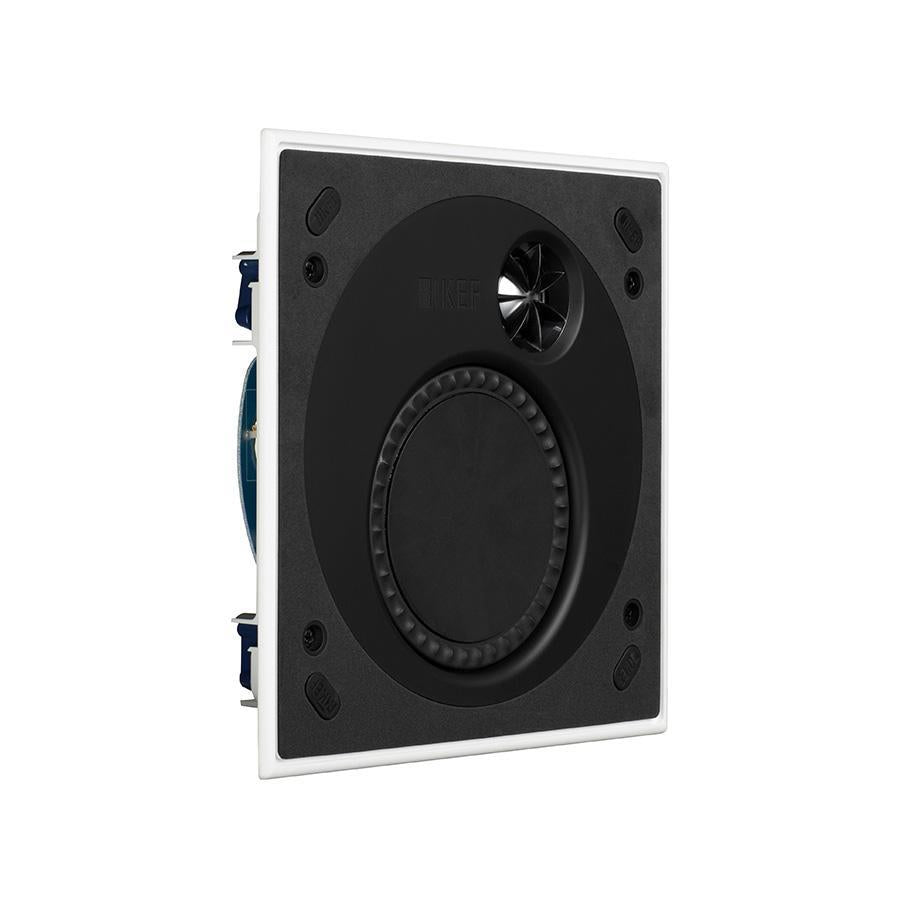

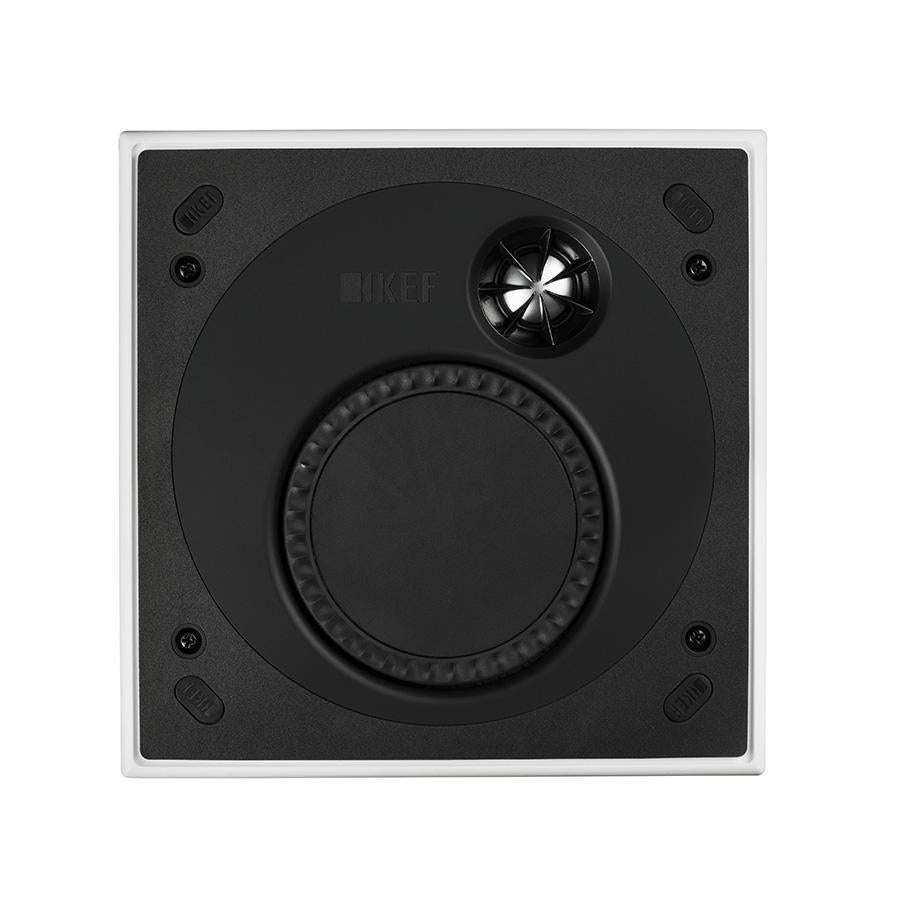

- Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
- Rigid flat diaphragm assures clean upper bass and mid-range response

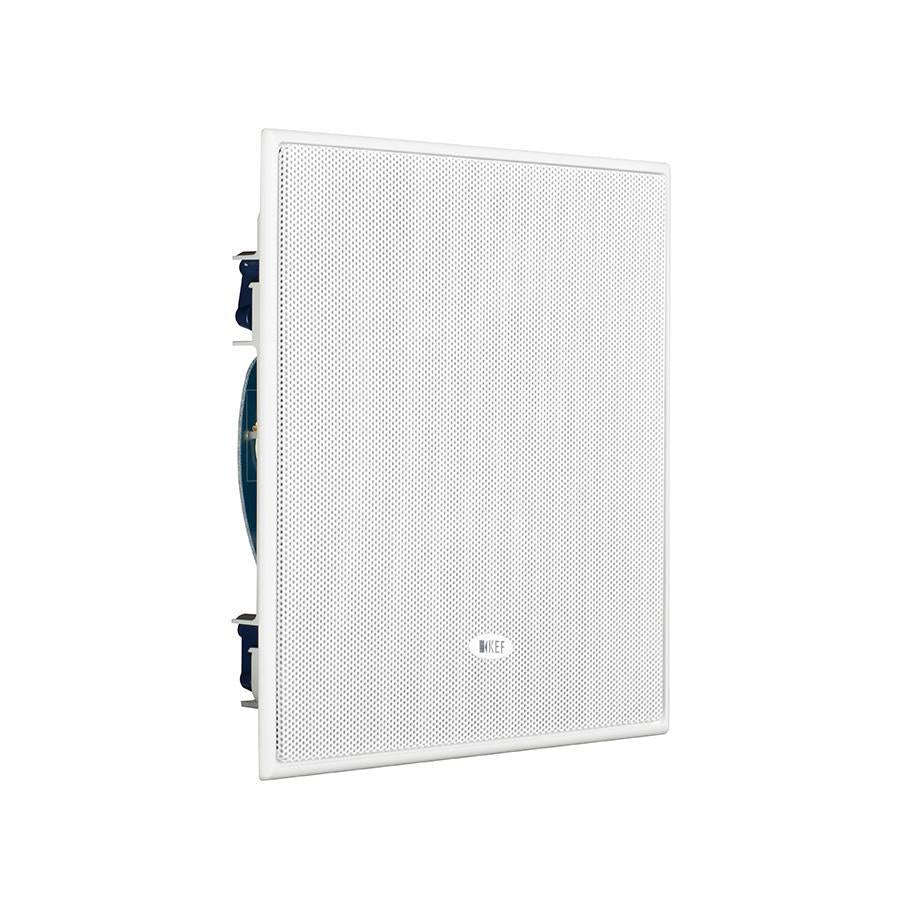

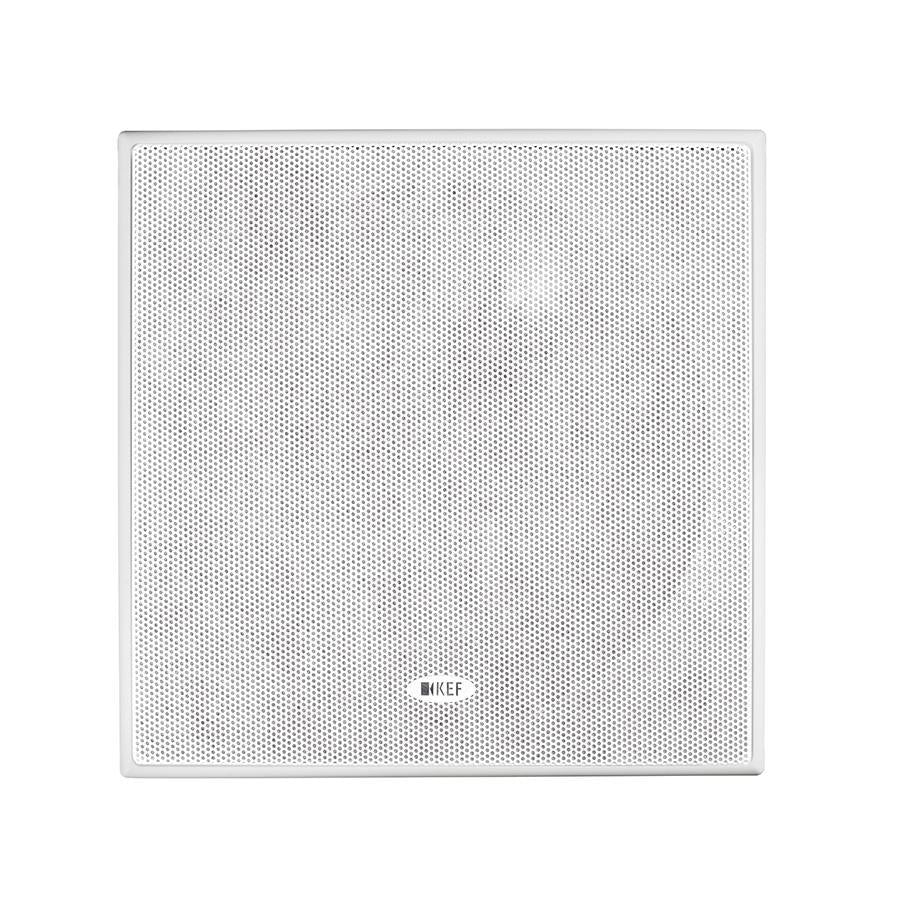

- Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
- Fast, versatile installation on virtually any surface via dogleg
SPECIFICATIONS
The Details
Specifications
NOMINAL IMPEDANCE
8 Ohm
SENSITIVITY
87dB (2.83V/ 1m)
CROSSOVER FREQUENCIES
1.7kHz
FREQUENCY RESPONSE
110Hz - 24Hz (+/-6dB) open-backed
DRIVE UNITS
LF: 115mm (4.5in. Dual layer)
HF: 25mm (1in.)
RECOMMENDED AMPLIFIER POWER
10-100W
PRODUCT EXTERNAL DIMENSION (H X W X D)
Diameter : 222.8x222.8 mm (8.77 x 8.77 in.)
Depth : 41mm (1.61in.)
Depth : 41mm (1.61in.)
CUT-OUT DIMENSIONS (H x W)
194 x 194 mm (7.64 x 7.64 in.)
MOUNTING THICKNESS
Ceiling Thickness (Maximum): 26mm (1.03 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)
Ceiling Thickness (Minimum): 9mm (0.36 in.)
MOUNTING DEPTH FROM SURFACE
<36mm (1 7/16in.)
OPTIONAL ROUGH IN FRAME
RIF160S
OPTIONAL REAR ENCLOSURE
RNC160S
NET WEIGHT
1.05kg (2.31lbs)
Please visit our Ci Software Download page for more details.
